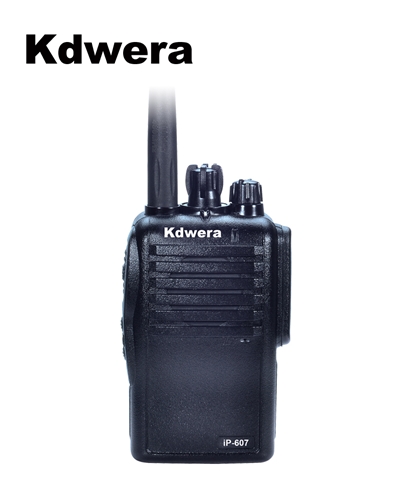

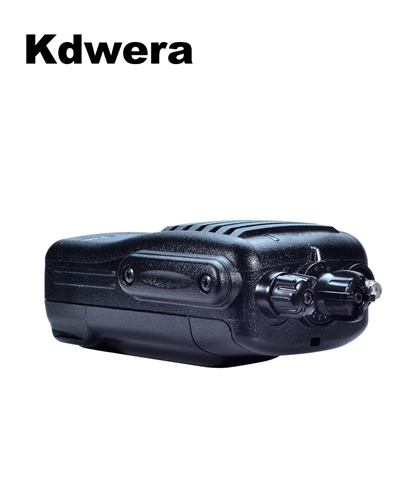

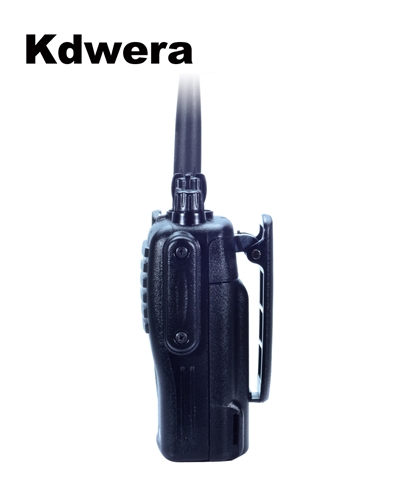

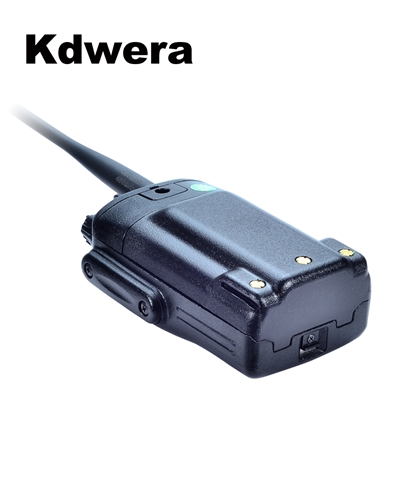

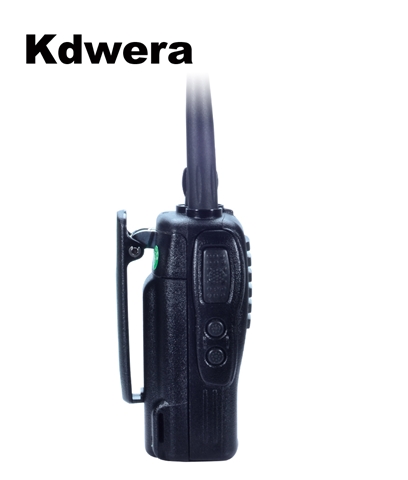

IP-607

  • IP-607

IP-607

Model Number：IP-607

Brand：Kdwera

Product Origin：Xiamen

Type：Handheld

inquiry

Detailed Introduction

Main Features

• VOX
• 107 DCS
• 50 CTCSS
• Priority scan
• Channel scan
• Li-ion battery pack
• Multiple call tones
• Voice annunciation
• Busy channel lockout
• Hi/Low power
• Time-out timer
• Low battery alert
• PC Programmable
• Selectable squelch level
• CO/TO/SE Scan switchable
• Programmable 25kHz(wide) 12.5kHz(narrow) channel spacing

Technical specification

General specificaiton
Frequency range VHF UHF
136-174MHz 245MHz 400-480KHz 350-390MHZ
Channel capacity 16
PLL channel spacing 12.5/25KHz
Battery voltage 7.4V(Li-ion)(2300mA L-ion)
Antenna lmpedance 50Ω
Operating Temperature -20℃_+60℃
Frequency Stability + 2.5PPM
Dimensions (with Battery) 97h(H)*58(W)*40(D)mm
Weight (with Battery) 250g
Standard Package Gift box (unit body together with the accessories)

Transmitter (Measurements made per TIA/EIA-603)
RF Power output 5W
Modulation type F3E
Maximum deviation ≤5.0KHz(W) / ≤ 2.5KHz(N)
Spurious emission ≤65dB
Modulation distortion ≤5%
FM noise ≤-45dB(W) / ≤-40dB(N)

Receiver (Measurements made per TIA/EIA-603)
Circuit type Double-conversion Superheterodyne
IFs 38.850MHz & 450KHz
Sensitivity(12dB SINAD) 0.2μV(W) / 0.25μV(N)
Squelch selectivity 0.15μV(W) / 0.2μV(N)
Adjacent channel selectivity ≥65dB(W) / ≥60dB(N)
Intermodulation ≥65dB
Spurious rejection ≥60dB
Image rejection ≥65dB
FM Ham and noise ≤-45dB(W) / ≤-40dB(N)
Modulation type 16KOF3E/11KOF3E
Operating bandwidth ≤ ± 7KHz / ≤ ± 5KHz
AF Output @ 4 Ohms 0.5W
Audio distortion ≤5%
