IP-609UV

  • IP-609UV

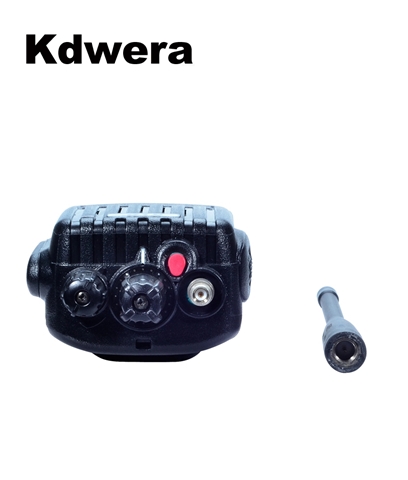

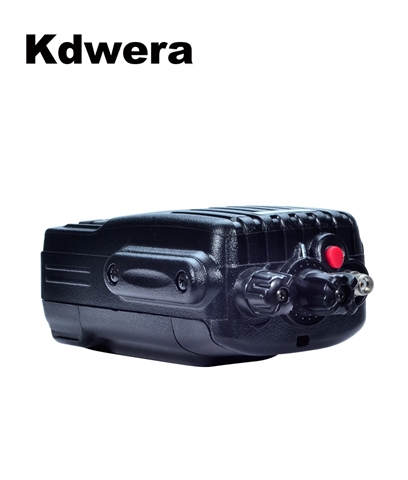

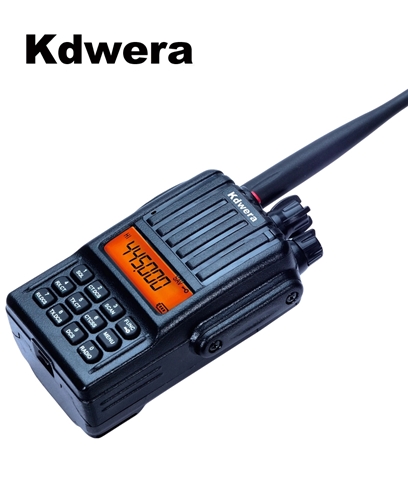

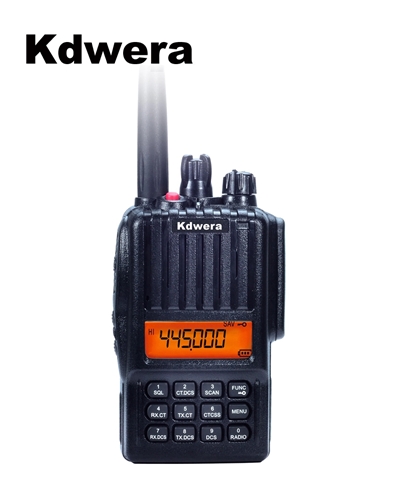

IP-609UV

Model Number：IP-609UV

Brand：Kdwera

Product Origin：Xiamen

Type：Handheld

inquiry

Detailed Introduction

Features

• Waterproof rate: ≥IP65
• Dual band
• Menu Mode
• VOX
• Keypad
• 107 DCS
• 50 CTCSS
• Priority Scan
• Channel Naming
• LCD Display
• Multiple Call Tones+1750Hz
• FM Radio
• Hi/Mid/Low Power
• Time-out Timer
• Low Battery Alert
• PC Programmable
• Selectable Squelch Level
• CO/TO/SE Scan Switchable
• Programmable Greeting Message
• Li-ion Battery Pack
• Busy Channel Lockout
• Frequency/Channel Scan
• Battery Strength Indicator
• Selectable Name/Frequency Display Mode
Specification
Model IP-609UV waterproof outdoor radio
Frequency Range VHF UHF
136-174MHz 400-480MHZ
Channel 199
PLL Channel Spacing 5/6.25/10/12.5/25KHz
Battery Voltage 7.4V DC (Li-ion Battery Pack)
Antenna Impedance 50Ω
Operating Temperature -20+60
Frequency Stability ±2.5PPM
Dimensions (with Battery) 87(H)*53(W)*34(D) mm
Weight (with Battery) 260g
Standard Package Radio with Standard Accessories
Transmitter(Measurements made per TIA/EIA-603)
RF Power Output 5W
Modulation Type F3E
Maximum Deviation ≤±5.0KHz
Spurious Emission ≤65dB Below Carrier
Modulation Distortion ≤5%(300-3000Hz)
FM Noise ≤-45dB
Receiver(Measurements made per TIA/EIA-603)
Circuit Type Double-conversion Superheterodyne
IFs 38.850MHz & 450KHz
Sensitivity(12dB SINAD) 0.2uV
Squelch Selectivity 0.15 uV
Adjacent Channel Selectivity ≥65dB
Intermodulation ≥65dB
Spurious Rejection ≥60dB
Image Rejection ≥65dB
FM Ham And Noise ≤-45dB
Modulation Type 16KOF3E
Operating Bandwidth ≤±7KHz
AF Output @ 4 Ohms 0.5W
Audio Distortion ≤5%
