KD-200UV

  • KD-200UV

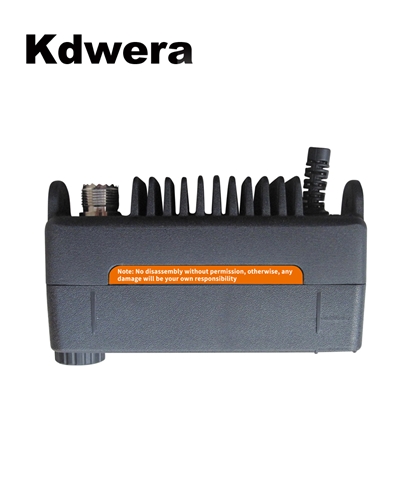

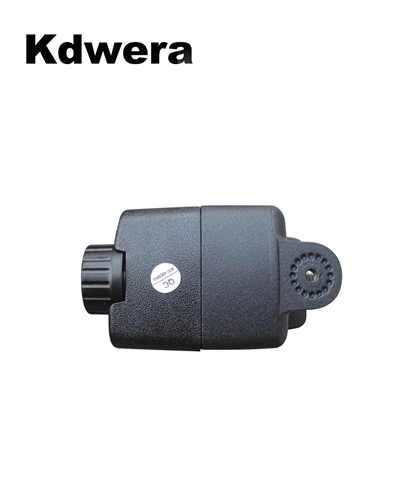

KD-200UV

Model Number：KD-200UV

Brand：Kdwera

Product Origin：Xiamen

Type：Vehicle Mouted

inquiry

Detailed Introduction

Main Features

• Dual band display
• Dual receiving
• VOX
• 53 CTCSS
• 107 DCS
• FM Radio
• 255 channels
• Channel scan
• Time-out timer
• FM Radio
• Big LCD display
• PC Programmable
• Busy channel lockoutm
• Hi / Low Power selection
• Selectable squelch Level
• CO /TO / SE Scan mode
• Narrow / Wide band selection
Specification
Frequency range VHF UHF
136-174MHz 400-480MHz  450-520MHz
Channel capacity 255
PLL channel spacing 5/6.25/10/12.5/25/50/100
Battery voltage 13.8V±10%
Antenna Impedance 50Ω
Operating Temperature -20°C~+60°C
Frequency Stability ±2.5PPM
Dimensions 121.5*65.5*42.5 mm
Current consumption Standby:0.1A
Receiver:0.3A
Transmil:3A
Waterproof rate IP54
Weight (with accessories,w/o antenna) 1.3kg

Compatible with american military standard(MIL-STD-810C/D/E)

Transmitter(Measurements made per TIA/EIA-603)
RF Power output 20W
Modulation type F3E
Maximum deviation ≤±5.0KHz (Wide) / ≤±2.5KHz (Narrow)
Spurious emission ≤65dB Below carrier
Modulation distortion ≤5%
FM noise ≤-42dB (Wide) / ≤-38dB(Narrow)

Receiver(Measurements made per TIA/EIA-603)
IFs 49.950MHz & 450KHz
Sensitivity(12dB SINAD) 0.2μV (Wide) / 0.25μV(Narrow)
Squelch selectivity 0.15μV (Wide) / 0.2μV(Narrow)
Adjacent channel selectivity ≥70dB (Wide) / ≥65dB(Narrow)
Intermodulation ≥70dB
Spurious rejection ≥65dB
Image rejection ≥70dB
FM Ham and noise ≤-45dB (Wide) / ≤-40dB(Narrow)
Modulation type 16KOF3E / 11KOF3E
Operating bandwidth ≤±7KHz / ≤±5KHz
AF Output @ 4 Ohms ≥ 2W (8Ω ,5% distorrition)
Audio Distortion ≤5%
