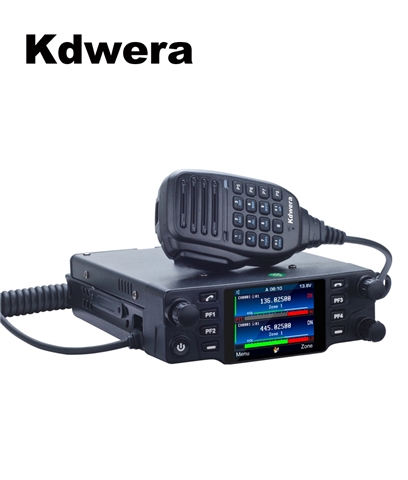

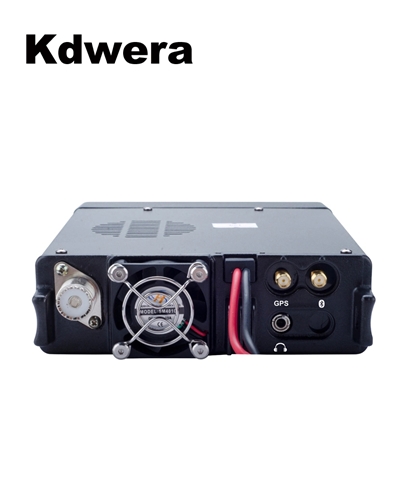

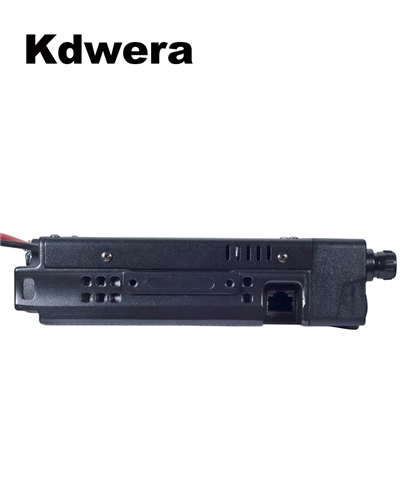

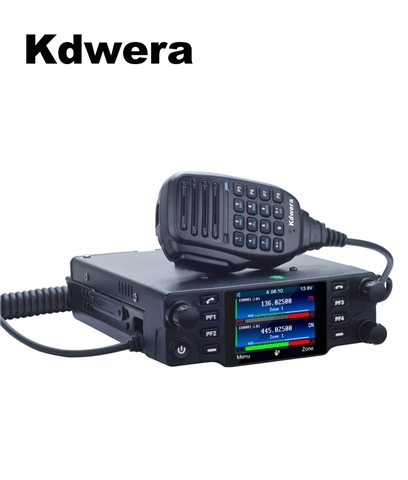

CDR-700UV

Model Number：CDR-700UV

Brand：Kdwera

Product Origin：Xiamen

Type：Vehicle Mouted

inquiry

Main Fratures

• Private call
• Group call
• All call
• Scan
• Remote kill
• Remote revive
• Repeater/ talkaround mode
• Bluetooth

• MSG
• Call log
• Voice encryption
• Repeater roaming
• Emergent alarm
• GPS
• DTMF (optional)
• Power save mode

• Remote monitor
• Call alert
• 200-hour record time
• Prompt tone on / off
• Support voice prompt for channel switching or function-option

Technical specification

General specificaiton
Items	UHF	VHF
Frequency	400-480MHz	136-174MHz
Channel zone	16
Channel capacity	4000 (250 channels / zone)
PLL Channel spacing	12.5kHz/25kHz
Operating Temperature	-20℃~+60℃
Antenna impedance	50Ω
Dimension(HWD)	13816041mm
Rated Voltage	DC: 13.8V
Note: Specification may have little difference without prior notice due to the continue techonology updated.

Receiver
Items	UHF	VHF
Frequency	400-480MHz	136-174MHz
Channel spacing	12.5kHz/25kHz
Frequency stability(-20℃、+60℃、+25℃)	+/-1.5ppm
Analogue sensitivity	0.3μV / 0.25μV
Digital sensitivity (5% BER)	0.25μV / 0.2μV
Intermodulation	65dB
Adjacent channel selectivity	60dB@12.5kHz / 65dB@25kHz
Spurious rejection	65dB
Rated audio	500mw
Audio distortion @ rated audio	3%
FM Hum & noise	-40dB@12.5kHz / -45dB@25kHz
Audio response	+1、-3dB
Conducted / radiated emission	-57dBm

Transmitter
Items	UHF	VHF
Frequency	400-480MHz	136-174MHz
Channel spacing	12.5kHz/25kHz
Frequency stability (-30°C、+60°C、+25°C)	+/-1.5ppm
Low Power	25W	25W
High power	40W	50W
Modulation restriction	±2.5dB@12.5kHz / ±5.0dB@25kHz
FM hum& noise	-40dB@12.5kHz / -45dB@25kHz
Conducted/radiated emission	-36dBm＜1GHz / -30dBm＞1GHz
Adjacent channel selectivity	-60dB@12.5kHz / -65dB@25kHz
Audio response	+1、-3dB
Audio distortion	3%
FM modulation	12.5kHz :11KOF3E 25kHz :16KOF3E
4FSK digital modulation	12.5kHz data: 7K60F1D & 7K60FXD 12.5kHz audio: 7K60F1E & 7K60FXE 12.5kHz data & audio: 7K60F1W
Digital vocoder	AMBE+2^TM
Digital agreement	ETSI-TS102 361-1、-2、-3
